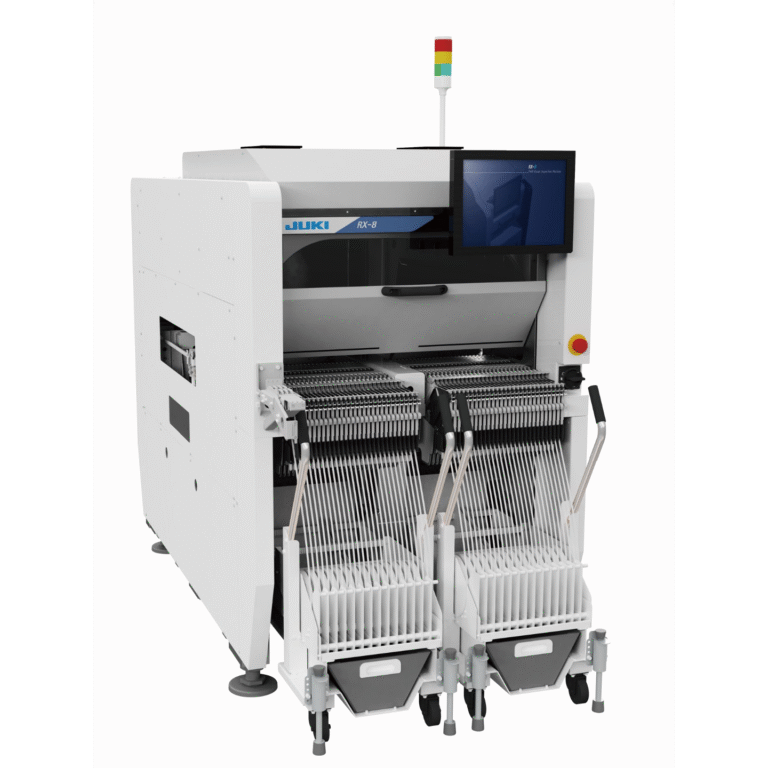

JUKI RX-8 High-Speed Compact Modular Mounter
Productivity Connected Quality
The JUKI RX-8 E, a top-tier high-speed compact modular mounter, boosts SMT efficiency with its P20 Planet Head—hitting 100,000 CPH (optimal) and a space-saving 998mm width for great area productivity.
It delivers ±0.04mm placement accuracy (Cpk ≥1) and uses advanced coaxial lighting vision to inspect ultra-small components (0202 chips to 5mm parts) and center them right. Its low-impact placement eases stress on delicate PCBs/components, fit for flexible substrates and high-density LEDs.
Integrated with JaNets/IFS-NX software, it enables real-time monitoring, component management, and bad mark propagation. It supports 50×50~510×450mm boards and up to 56 components, suiting diverse high-volume needs—ideal for manufacturers after productivity, precision, and connectivity.
Productivity Connnected
- High speed placements of up to 100,000CPH. Best-in-class placement rate per square meter(sq ft).
- Integrates seamlessly with the production enviroment.
- It is very simple to generate PCB programming data.
Quality
- Track Monitor tracks quality throughout the production process.
- Low impact placement for flexible circuits.
- The P20 high-precision planet head is ideal for high speed picking and placing from a single reel.
- State-of-the-art centering and inspection vision system.
- New high accuracy camera for inspection and centering.
| High-Speed Compact Modular Mounter RX-8 | ||
| Board size | 50×50～510mm¹*²×450mm | |
| Component height | 3mm | |
| Component size | 0201*³~□5mm | |
| Placement speed(optimum) | Chip | 100,000CPH |
| Placement accuracy | ±0.04mm(Cpk≥1) | |
| Feeder capacity | Up to 56*⁴ | |
| Power supply | 3-phase AC200V,220V-430V*⁵ | |
| Apparent power | 2.1kVA | |
| Operating air pressure | 0.5±0.05MPa | |
| Air consumption(standard) | 20L/min ANR(during normal operation) | |
| Machine dimensions(W×D×H) | 998mm×1,895mm×1,530mm | |
| Mass(approximately) | 1,810 kg(with fixed bank)/1,760 kg(with bank changing) | |
