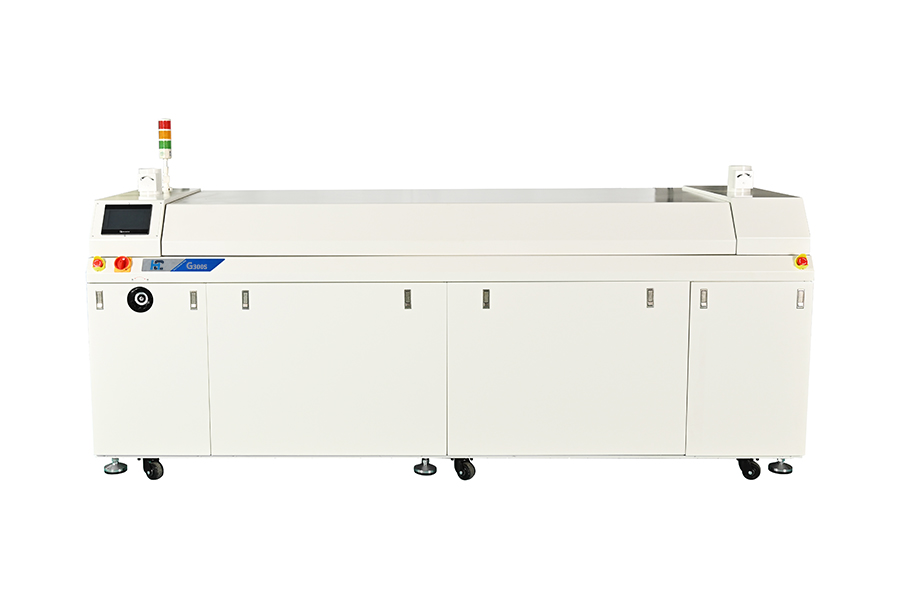

Forno di polimerizzazione UV G300S
The G300s Infrared Curing Furnace is engineered for superior heat insulation and efficiency in industrial curing processes. With a double-layer furnace chamber and multi-stage independent temperature control, this furnace ensures energy savings and high-performance curing. Its detachable temperature zone design simplifies maintenance, while the equal height air outlet and outer cover provide a sleek and professional appearance. The G300s is the epitome of precision and reliability in infrared curing technology.
- Double-Layer Chamber: Enhanced heat insulation for energy efficiency.
- Detachable Zones: Facilitates easy maintenance and accessibility.
- PID Regulation: Ensures precise temperature control for consistent results.
- Temperature Accuracy: Controlled within ±5°C for reliable curing.
- Customizable Power: Tailored power options for various curing needs.
- Model: G300s
- Transport System:
- Conveying Element Height: ±100mm
- Transport Chain Height: 900±20mm
- Transfer Speed: 0.1-4m/min
- Transmission Direction: Left to Right (standard), Port right to left
- Maximum Load: 8kg/m evenly distributed
- Sistema di controllo della temperatura:
- Number of Warm Zones: 3 temperature zones (integrated body cover heating)
- Temperature Range: Room temperature to 100°C (adjustable in range)
- Temperature Zone Power: 600W*7 (number of lamps) *3 temperature zones
- Warming Time: 10Min
- Temperature Control Accuracy: ±5°C
- Factory Requirements:
- Overall Dimension: L3000xW980xH1300 mm
- Supply Voltage: 380V, 50Hz, three-phase five-wire system
- Rated Power: 11kW
- Additional Features:
- Back Plate Wire Heating
- Under Track Heating
- Back Board Wire
- Electric Adjustment of Track Width
